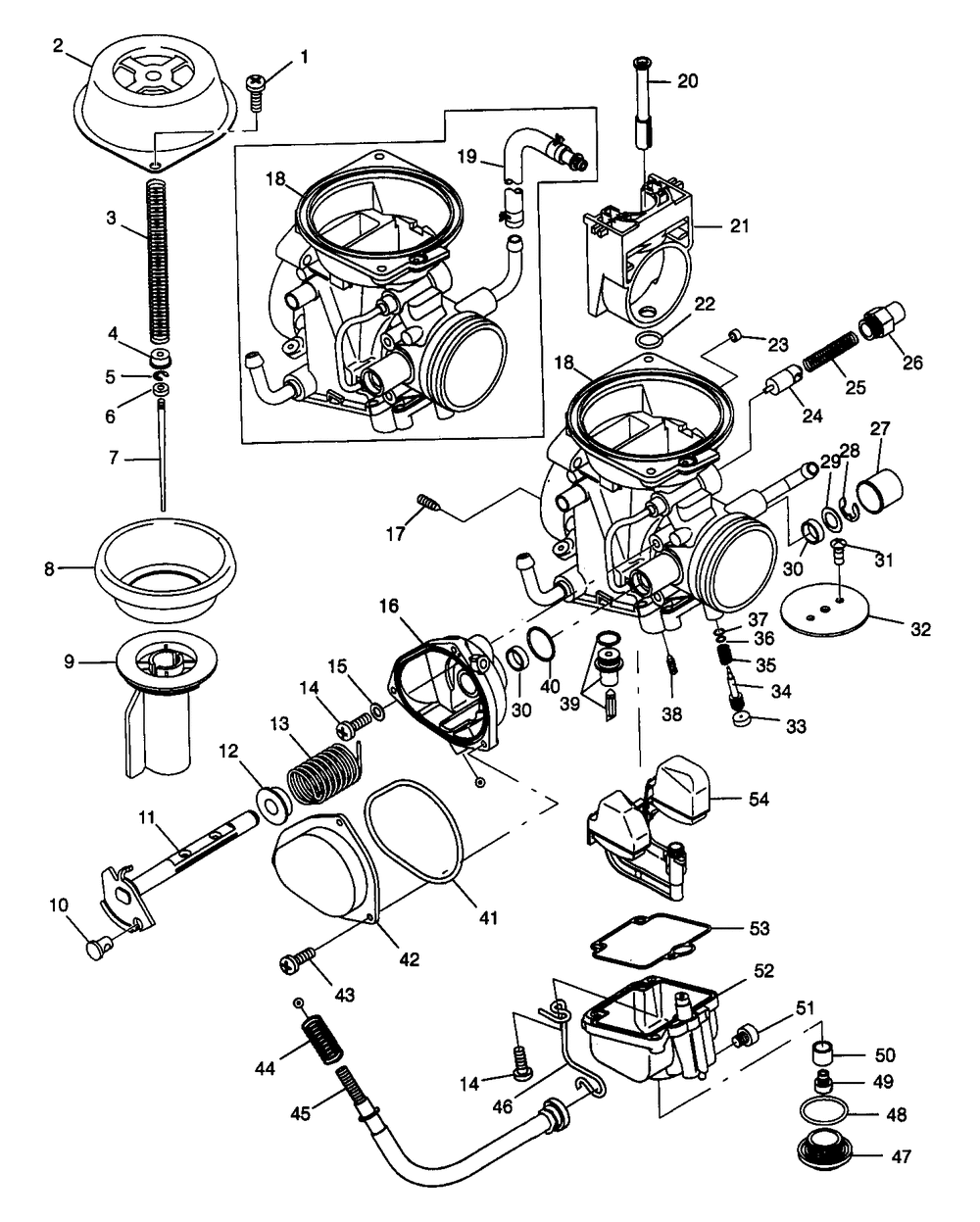

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | SCREW | 2 | |
| 2 | COVERDIAPHRAGM | 1 | |
| 3 | SPRING* | 1 | |
| 4 | RING* | 1 | |
| 5 | RING"E" | 1 | |
| 6 | RING | 1 | |
| 7 | NEEDLE-JETJ8-6H25-94-3 | 1 | |
| 8 | DIAPHRAGM | 1 | |
| 9 | VALVEPISTON | 1 | |
| 10 | GUIDECABLE | 1 | |
| 11 | THROTTLE SHAFT ASM. | 1 | |
| 12 | RING | 1 | |
| 13 | SPRING | 1 | |
| 14 | SCREW | 4 | |
| 15 | WASHER | 2 | |
| 16 | CASE | 1 | |
| 17 | JETAIR(PAJ1) | 1 | |
| 18 | ASM-CARBURETOR (Incl. 1-53) | 1 | |
| 18 | ASM-CARBURETOR (Incl. 1-54) NOTE: Check Model Number. If Mark is "50L04B" order PN 3130903. If Mark is "50L04A" order PN 3130945. | 1 | |
| 20 | NEEDLE JET | 1 | |
| 21 | BLOCKJET | 1 | |
| 22 | RING"O" | 1 | |
| 23 | CAP | 1 | |
| 24 | PLUNGER ASM. [AA] | 1 | |
| 25 | SPRING | 1 | |
| 26 | HOLDERGUIDE | 1 | |
| 27 | CAP | 1 | |
| 28 | E-RING | 1 | |
| 30 | SEAL | 2 | |
| 31 | SCREW | 2 | |
| 32 | VALVETHROTTLE120 | 1 | |
| 33 | PLUG | 1 | |
| 34 | ADJUSTER | 1 | |
| 35 | SPRING | 1 | |
| 36 | WASHER(10) (10 per pack) | 1 | |
| 37 | O-RING* | 1 | |
| 38 | JETPILOTtahos_40 | 1 | |
| 39 | VALVE-NEEDLE1.5 | 1 | |
| 40 | O-RING | 1 | |
| 41 | O-RING | 1 | |
| 42 | COVER | 1 | |
| 43 | SCREW | 3 | |
| 44 | SPRING | 1 | |
| 45 | ASM-CABLE ADJUSTER | 1 | |
| 46 | CLIP | 1 | |
| 47 | PLUG DRAIN | 1 | |
| 48 | O RING | 1 | |
| 49 | MAIN JETtahos_152.5 | 1 | |
| 50 | RING | 1 | |
| 51 | SCREW | 1 | |
| 52 | FLOAT BODY ASM. | 1 | |
| 53 | SEAL* | 1 | |
| 54 | FLOAT ASM. | 1 |
