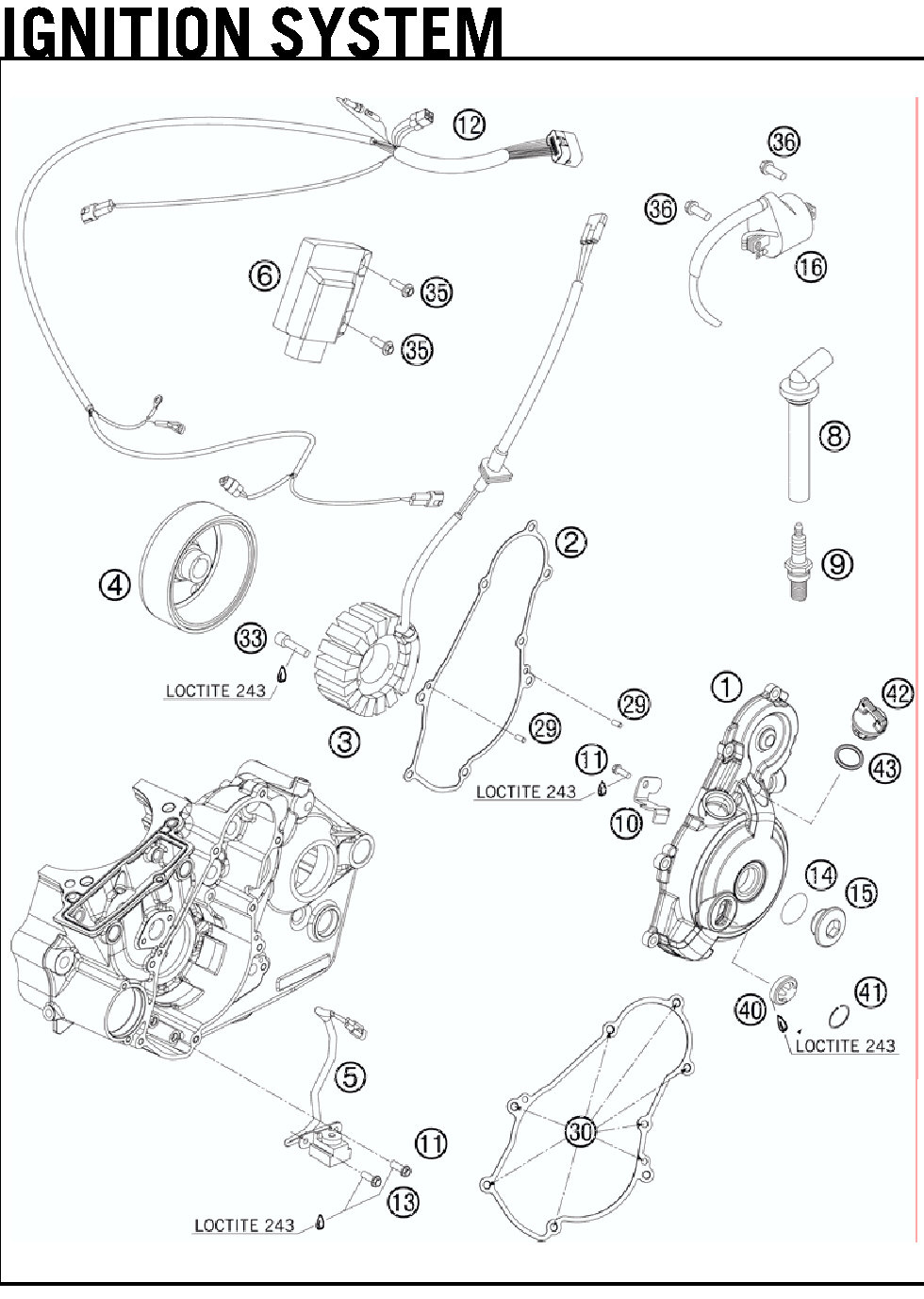

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | IGNITION COVER | 1 | |
| 2 | IGNITION COVER GASKET | 1 | |
| 3 | STATOR | 1 | |
| 4 | ROTOR | 1 | |
| 5 | PULSER COIL KOKUSAN "PU5165" | 1 | |
| 6 | CDI UNIT ATV 505 SX 09 | 1 | |
| 8 | SPARK PLUG NGK-XD05EMGK | 1 | |
| 9 | Свеча зажигания | 1 | |
| 10 | WIRE RETAINING BRACKET | 1 | |
| 11 | COLLAR SCREW M5X10 ISA30 | 3 | |
| 12 | WIRING HAR. F. CDI-BOX 525 ATV | 1 | |
| 14 | O-RING 2200X200 B70 | 1 | |
| 15 | SCREW PLUG M24X15 PA 6.6 | 1 | |
| 16 | IGNITIONCOIL "IG5128" | 1 | |
| 29 | NEEDLE ROL.DIN5402 NRB 4X98 | 2 | |
| 30 | HH COLLAR SCREW M6X20 TX30 | 7 | |
| 33 | AH SCREW DIN0912-M 5X25 | 2 | |
| 35 | HH COLLAR SCREW M6X20 TX30 | 2 | |
| 36 | HH COLLAR SCREW M6X16 TX30 | 2 | |
| 40 | OIL SIGHT GLASS | 1 | |
| 41 | CIRCLIP OIL LEVEL GLASS 03 | 1 | |
| 42 | PLUG CPL. M24X3 | 1 | |
| 43 | O-RING 1900X300 NBR | 1 |
