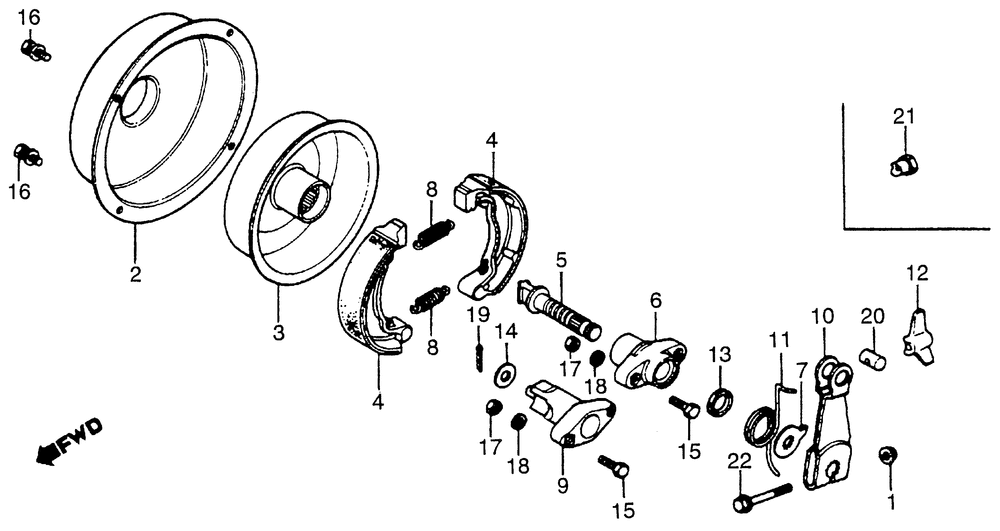

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 001 | NUT, FLANGE (6MM) | 1 | |
| 002 | COVER BRAKE DRUM | 0 | |
| 003 | DRUM BRAKE | 0 | |
| 004 | SHOE BRAKE | 0 | |
| 005 | CAM, RR. BRAKE | 1 | |
| 005 | CAM RR. BRAKE | 1 | |
| 005 | CAM RR. BRAKE | 1 | |
| 006 | HOLDER BRAKE CAM | 0 | |
| 008 | SPRING, BRAKE SHOE | 2 | |
| 009 | ANCHOR BRAKE SHOE | 0 | |
| 010 | ARM RR. BRAKE | 1 | |
| 010 | ARM RR. BRAKE | 1 | |
| 011 | SPRING BRAKE RETURN | 0 | |
| 013 | DUST SEAL, BRAKE CAM | 1 | |
| 014 | WASHER A | 0 | |
| 015 | BOLT, HEX. (6X16) | 4 | |
| 015 | BOLT, HEX. (6X16) | 4 | |
| 015 | BOLT, HEX. (6X16) | 4 | |
| 015 | BOLT, HEX. (6X16) | 4 | |
| 015 | BOLT, HEX. (6X16) | 4 | |
| 016 | BOLT-WASHER (6X12) | 4 | |
| 016 | BOLT-WASHER (6X12) | 4 | |
| 017 | NUT HEX. (6MM) | 4 | |
| 017 | NUT, HEX. (6MM) | 4 | |
| 018 | WASHER, SPRING (6MM) | 4 | |
| 019 | PIN, SPLIT (2.0X28) | 1 | |
| 019 | PIN, COTTER (2.0X22) | 1 | |
| 019 | PIN SPLIT (2.0X35) | 1 | |
| 019 | PIN, SPLIT (2.0X22) | 1 | |
| 019 | PIN SPLIT (2.0X35) | 1 | |
| 019 | PIN, SPLIT (2.0X20) | 1 | |
| 019 | PIN, COTTER (2.0X32) | 1 | |
| 020 | JOINT B, BRAKE ARM | 1 | |
| 021 | NUT B | 1 | |
| 022 | BOLT FLANGE (6X32) | 1 |
