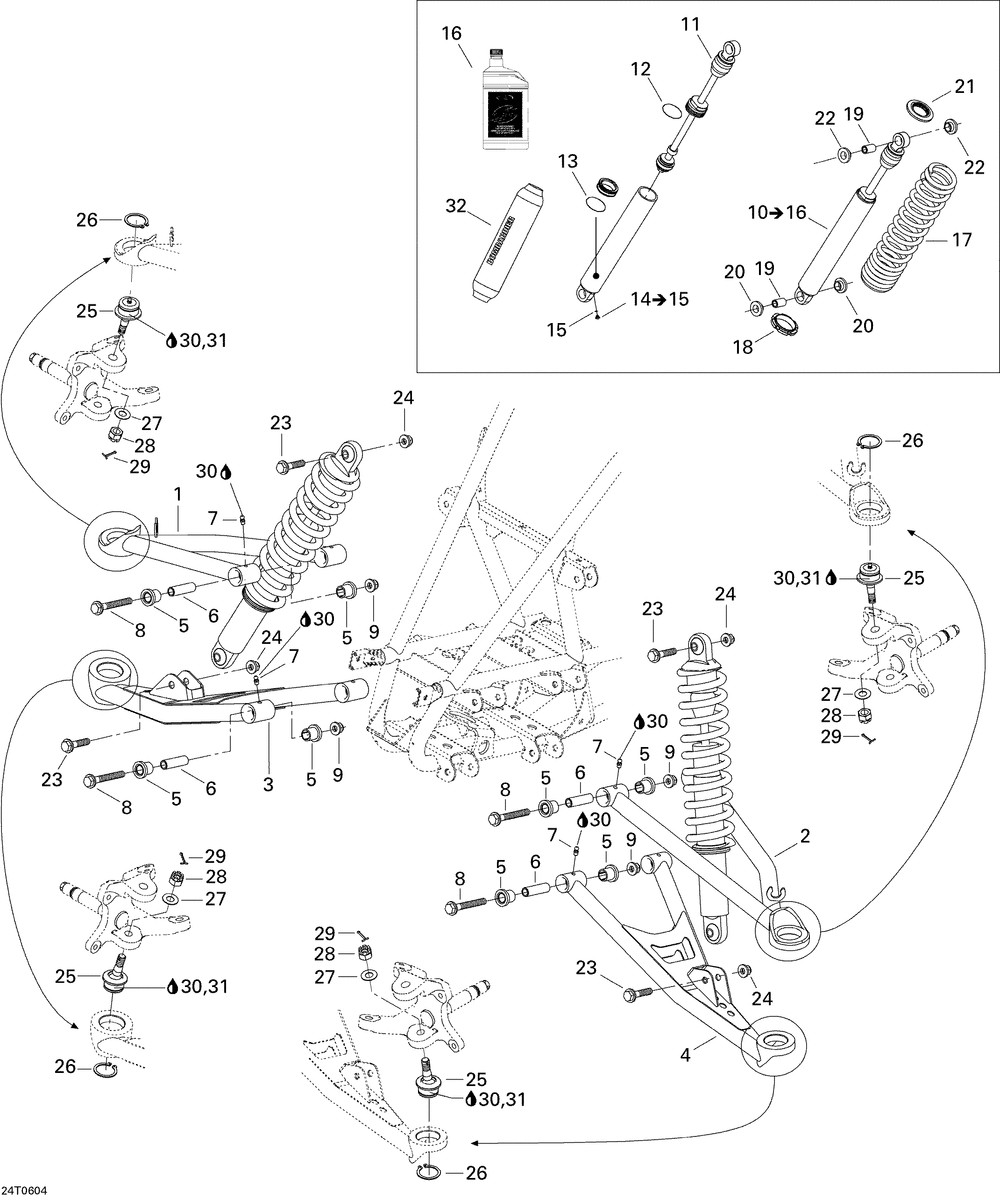

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RH UPPER ARM | 1 | |
| 2 | LH UPPER ARM | 1 | |
| 3 | RH LOWER ARM | 1 | |
| 4 | LH LOWER ARM | 1 | |
| 5 | CUSHION | 16 | |
| 6 | INTERNAL BUSHING | 8 | |
| 7 | GREASE FITTING (10.000 per pack) | 8 | |
| 8 | HEX. FLANGED SCREW M10 X 75 | 8 | |
| 9 | Hex. Flanged Elastic Nut M10 | 8 | |
| 10 | FRONT SHOCK Includes 10 to 16 | 2 | |
| 11 | PISTON ASS Y | 2 | |
| 12 | O-RING | 2 | |
| 13 | O-RING PISTON *PISTON O-RING | 2 | |
| 14 | PRESSURE VALVE ASS Y Includes 14 to 15 | 2 | |
| 17 | SPRING | 2 | |
| 18 | SPRING SEAT | 2 | |
| 19 | DOUILLE *BUSHING | 4 | |
| 20 | CUSHION | 4 | |
| 21 | SPRING RETAINER | 2 | |
| 22 | BUSHING | 4 | |
| 23 | HEX. FLANGED SCREW M10 X 50 | 4 | |
| 24 | HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) | 4 | |
| 25 | BALL JOINT | 4 | |
| 26 | CIRCLIP | 4 | |
| 27 | FLAT WASHER | 4 | |
| 28 | HEX. CASTELLATED NUT M12 (5.000 per pack) | 4 | |
| 29 | COTTER PIN (50.000 per pack) | 4 | |
| 30 | SUSPENSION GREASE 10 X 400 G | 0 | |
| 31 | LOCTITE 609 10 ML | 0 | |
| 32 | PROTECTOR | 2 |
