SEA-DOO Speedster 200 Twin 4-TEC, 1st Edition Speedster 200 Twin 4-TEC, 1st Edition 09- Seat (front And Rear)

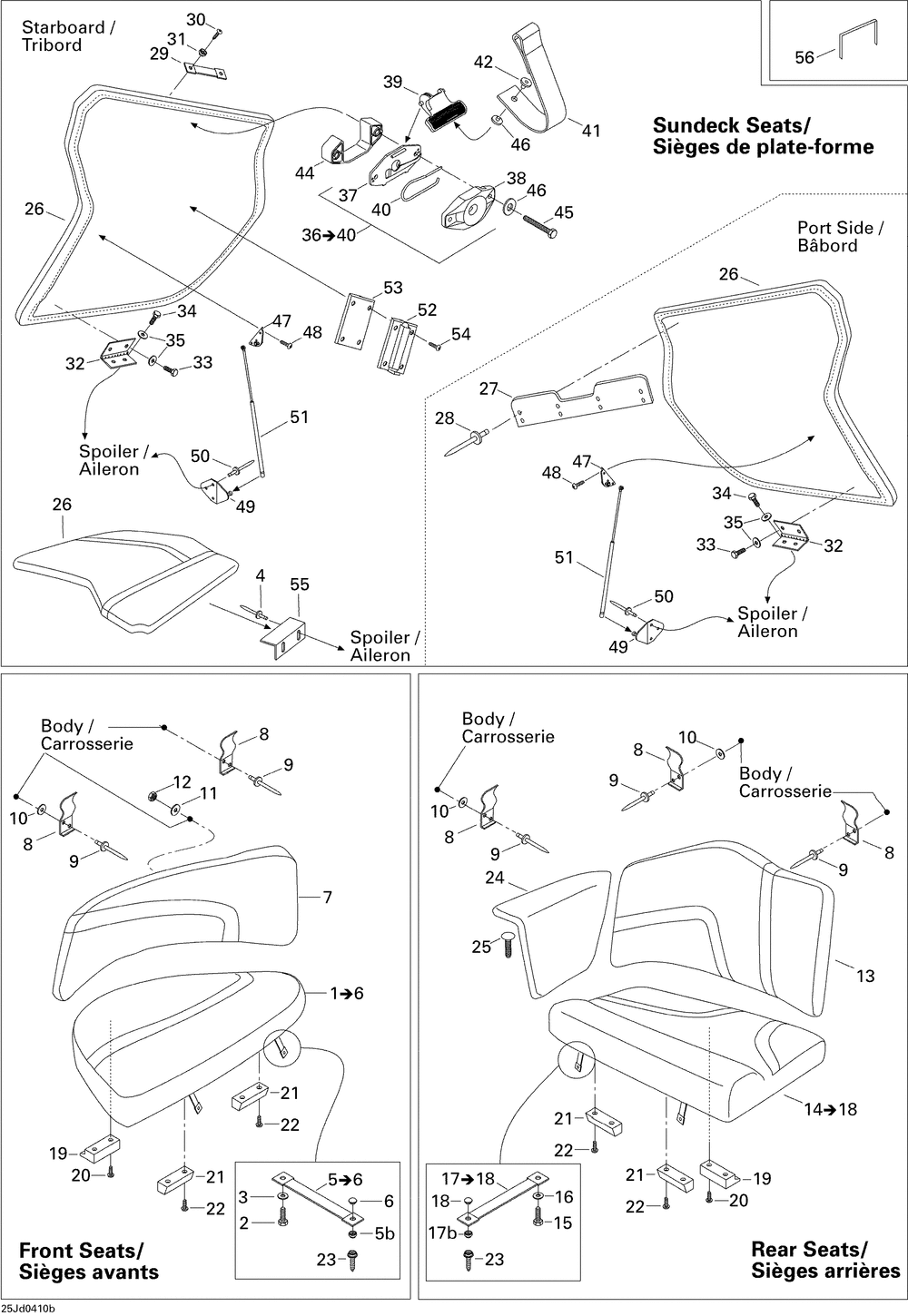

09- Seat (front And Rear)
№ Наименование Примечание Кол-во
FRONT SEAT ASS Y PORT SIDE INCLUDES 1 TO 6 / BLUE 5160 1
REAR SEAT ASStahos_Y STARBOARD INCLUDES 14 TO 18 / BLUE 5160 1
SUNPAD DOOR ASStahos_Y STARBOARD 1
ARMREST PORT SIDE 1
REAR SEAT ASS Y PORT SIDE INCLUDES 14 TO 18 / BLUE 5160 1
SIEGE ARRIERE*SEAT-REAR ASSY/PORT INCLUDES 14 TO 18 / RED 5773 1
SUNPAD DOOR ASStahos_Y PORT SIDE 1
REAR BACKREST ASStahos_Y STARBOARD 1
SUNPAD DOOR ASStahos_Y PORT SIDE 1
REAR BACKREST ASStahos_Y PORT SIDE 1
FRONT SEAT BACKREST ASStahos_Y STARBOARD 1
REAR BACKREST ASStahos_Y PORT SIDE 1
FRONT SEAT BACKREST ASStahos_Y PORT SIDE 1
FRONT SEAT BACKREST ASStahos_Y PORT SIDE 1
FRONT SEAT ASStahos_Y STARBOARD INCLUDES 1 TO 6 / BLUE 5160 1
FRONT SEAT ASStahos_Y PORT SIDE INCLUDES 1 TO 6 / RED 5773 1
1 FRONT SEAT ASS Y STARBOARD INCLUDES 1 TO 6 / RED 5773 1
2 SCREW 8 X 3/4tahos_ (10.000 per pack) 2
3 FLAT WASHER (5.000 per pack) 2
4 POP RIVET 3/16" (5.000 per pack) 2
5b SNAP BASE WAKE (4.000 per pack) 1
6 SNAP COVER SE (10.000 per pack) 1
7 FRONT SEAT BACKREST ASStahos_Y STARBOARD 1
8 SEAT SUPPORT 12
10 Flat Washer 5 mm, Stainless 12
11 WASHER-FENDER/S.S. 2
12 HEX. NUT 1/4" (5.000 per pack) 2
13 REAR BACKREST ASStahos_Y STARBOARD 1
14 REAR SEAT ASS Y STARBOARD INCLUDES 14 TO 18 / RED 5773 1
19 SEAT LATCH 4
20 TAPPING PAN SCREW M14 X 2 (10.000 per pack) 8
21 LATCH 8
22 PHILLIPS TAPPING SCREW M4.2 X 32 (5.000 per pack) 16
23 SCREW-STUD TAPP. 3/8" SS WAKE 8
24 ARM REST STARBOARD 1
25 DART (10.000 per pack) 4
26 SUNPAD DOOR ASStahos_Y STARBOARD 1
27 RETAINER PLATE 1
28 POP RIVET 3/16" (10.000 per pack) 8
29 HOUSSE BOUCLE*COVER-LOOP 1
30 PHILLIPS TAPPING SCREW tahos_8 X 1" (10.000 per pack) 2
31 FINITION WASHER (10.000 per pack) 2
32 SUNDECK HINGE 4
33 TAPPING SCREW 1/4-20 X 3/4" 8
34 TAPPING SCREW 1/4-20 X 1/2" (10.000 per pack) 8
35 Flat Washer M6, Stainless 16
36 LATCH ASStahos_Y Includes 5 - 8. 1
37 LATCH COVER 1
38 LATCH ASS Y 1
39 LATCH ASS Y 1
40 LATCH SPRING (3.000 per pack) 1
41 COURROIE *STRAP 1
42 RATCHET RIVET (10.000 per pack) 1
43 RATCHET RIVET (25.000 per pack) 1
44 SHIM 1
45 HEX. BOLT TAPPING 2
47 SUPP.AMORT.*BRACKET-SHOCK/REWORK 2
48 SCREW-PAN HD.tahos_10 X 5/8" SS 4
49 SUPP.AMORT.*BRACKET-SHOCK/FLAT 2
51 GAS SHOCK 2
52 SLIDE LATCH 1
53 LATCH SHIM 1
54 TAPPING SCREW (10.000 per pack) 4
55 KEEPER (5.000 per pack) 1
